FEATURES

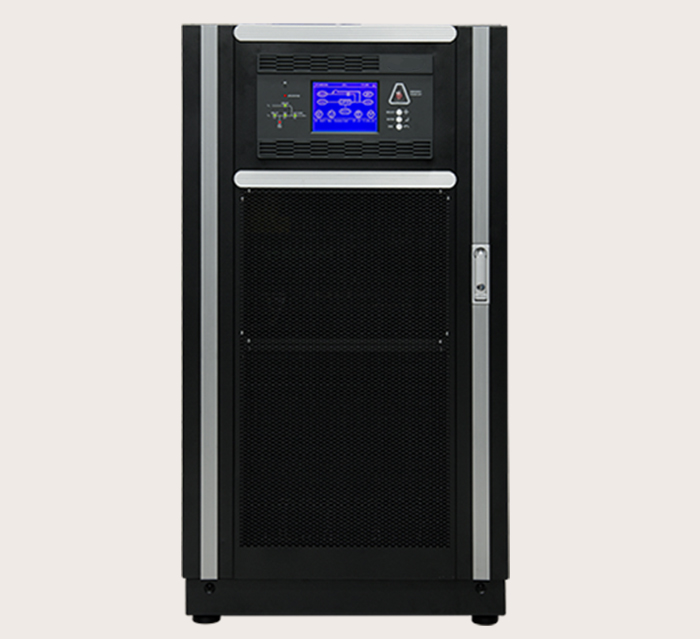

  • Three Phase Modular UPS
  • Online (Double Conversion) UPS Topology
  • Energy Saving Technology
  • UPS Parallel Expansion
  • Dual Inputs
  • Generator Compatible
  • Pure Sine Wave Output
  • Overload Protection
  • Maintenance Bypass Switch
  • LCD Status Display
  • Emergency Power Off (EPO) Port
  • POWERTECH® Management Software





TYPICAL APPLICATION

  • Data Closets
  • Transportation & Infrastructure
  • Emergency Systems
  • Server Room
  • Data Center
  • Industrial Factory
  • Power Generation








FEATURE FOCUS




Three-phase Power Input




Three-phase power is commonly used in large businesses and is also increasingly popular in power-

hungry, high-density data centers. Instead of going through a hassle to convert from an existing single-

phase installation, the three-phase allows smaller, less expensive wiring, guaranteeing power protection

and high efficiency for equipment designed to operate on three-phase.





N+1 Redundancy




In order to enhance power continuity and power protection for data center servers, power redundancy is

realized by adding an additional power backup to evenly share the power consumed by rear end loads,

thus achieving the highest protection against UPS failure while significantly increasing system reliability.











Model
Capacity20000 // 60000 // 120000 // 200000
Power Watt18000 // 54000 // 108000 // 180000
Input
Input Voltage RangeLine to Line (L-L): 228 ~ 478 Vac Line to Neutral (L-N): 132 ~ 276 Va (20) // Line to Neutral (L-N): 132 ~ 276 Vac Line to Line (L-L): 228 ~ 478 Vac (120) // Line to Neutral (L-N): 132 ~ 276 Vac Line to Line (L-L): 228 ~ 478 Vac (200) // Line to Neutral (L-N): 132 ~ 276 Vac Line to Line (L-L): 228 ~ 478 Vac (60)
Input Power Factor0.99
Input Frequency Range60 ± 3 // 50 ± 3
Output
Output Voltage RangeConfigurable
THD (THDv)Harmonic Distortion (Linear Load) THD<1% Harmonic Distortion (Non-linear Load) THD<5.5%
Output Frequency RangeConfigurable
Overload CapacityInternal Current Limiting , Fuse
Crest Factor (CF)3 : 1
Battery
Charge Value (C)Configurable
Communication
Communication Port-
Protocol-
Standards
Performance-
General
Running Temperature0 ~ 40
Storage Temperature40- ~ 70
Humidity0 ~ 95
Parallel Operation-
Net Weight (kg)28.5 (20) // 105 (60)// 145 (120) // 179 (200)
Dimensions (WxDxH) (mm)620x235x780 (20) // (60) 600 x 1100 x 900 // (120) 600 x 1600 x 900 // (200) 600 x 2000 x 900
