Complete digital control technology

Fully digital control with two DSPs, all the subsystems are digital controlled including the IGBT rectifier, inverter, charger, discharger.

Excellent electrical properties

True online double conversion instruction offers the safe and effective power protection for various loads, with strong output load capacity;

High input power factor, green and energy-saving

Input end with PFC and input PF of the whole UPS up to 0.99;

Dual AC input source supportable

Allowable AC and bypass 2 input ac source

Strong environmental adaptability

Wide input voltage and frequency range, adaptation to all kinds of climatic

and geographical environment;

Comprehensive protection measures

 Surge Protection, short circuit protection, and other protection to ensure the reliability of UPS;

IGBT and SCR adopts the advanced EUPEC power module;

The adoption of advanced technology (IGBT driving technology, IGBT soft over-current shutdown) improves the reliability and safety of inverter.

Similar modular design

Each phase main board are designed like rack  for easy assembling and maintenance

Inbuilt battery pack  plug-in design for easy use

Intelligent battery management (ABM)

Adopting the intelligent battery management:

Intelligent interval  three-stage charging process( constant current,constant voltage, float charging and charger shut off, when battery voltage decrease to a lower level, charger restarts to work)

temperature compensation, to extremely extend battery life and minimize the maintaining work;

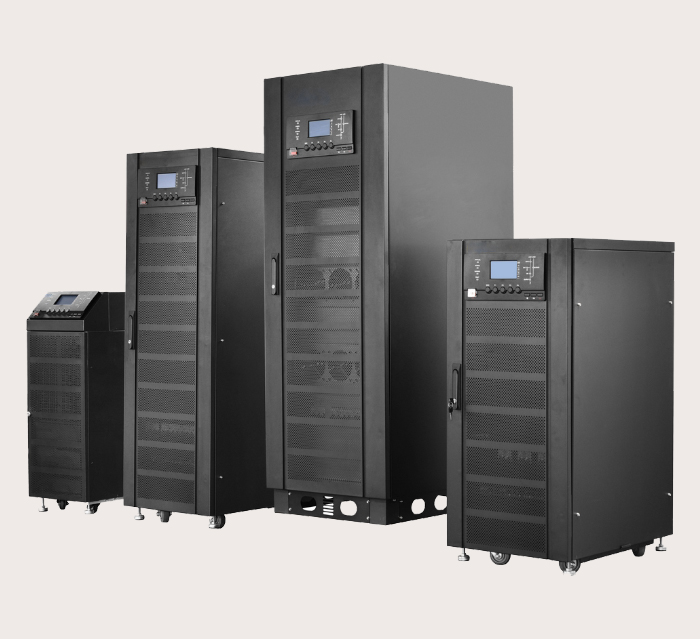

OEM 380/400/ 415Vac Online High Frequency ups 10-120kva For Server Small and middle Business

Online detecting battery status,

The max battery charging current can set by end users according to the battery features, to avoid any damage caused by the big charging current;

Back up time displayed on the LCD screen

Periodic self-test battery, detecting the battery problems timely;

With battery inverse connection, over voltage / current protection, to protect the battery;

Cold start and  AC start Function

Directly start the UPS through battery or start UPS through Mains only.

Superior network monitoring capabilities

Communication port (RS232, USB, and so on) connecting with computer,SNMP card optional,

Easy-maintenance design

a) Adopts the full front maintenance design, reducing the restrictions

on the installation space, and saving the space of computing center;

b)Modular design class, convenient and easy site maintenance;

c) With manual maintain bypass,

d)Battery replacement without disrupting the UPS running;

e) Historical records search function, events up to1,000 items;

Friendly interface with Large LCD

 Large LCD display and LED status indication; Abundant information display of UPS;


Capacity10Kva - 15Kva- 20Kva - 30Kva - 40Kva - 60Kva - 80Kva - 100Kva - 120Kva ) <-- 10Kva-120Kva)
Power Watt9Kw-108Kw
Input Voltage Range380/400/415Vac(Line-Line)-40%~+25%
Input Power FactorAbove 0.999
Input Frequency Range40-70Hz
Total Harmonic Distortion (THDi)Less 2%
Output Voltage Range380/400/415Vac±0.5%
THD (THDv)THD less 0.6%( linear load ),3%(non-linear load)
EfficiencyAbove 92%(Line and battery mode)
Output Frequency Range380/400/415Vac±0.5%
Overload Capacity105% long time operation, 105%
Crest Factor (CF)3:1
Quantity (12V DC VRLA)+/-216Vdc( 168/192/216/240Vdc settable from LCD screen)
Charge Value (C)-
Battery Power1-40A,ABM technology (settable from LCD)
Internal Battery7Ah/9Ah
Communication Port-
Dry Contact-
Running Temperature-
Storage Temperature-
Protection ClassIP20
Parallel OperationUnits 6
EPO (Emergency Power Off)-
Isolation Transformeroptional
Net Weight (kg)-
Dimensions (WxDxH) (mm)-
